HT Series Lifting Magnets for Steel Tubes

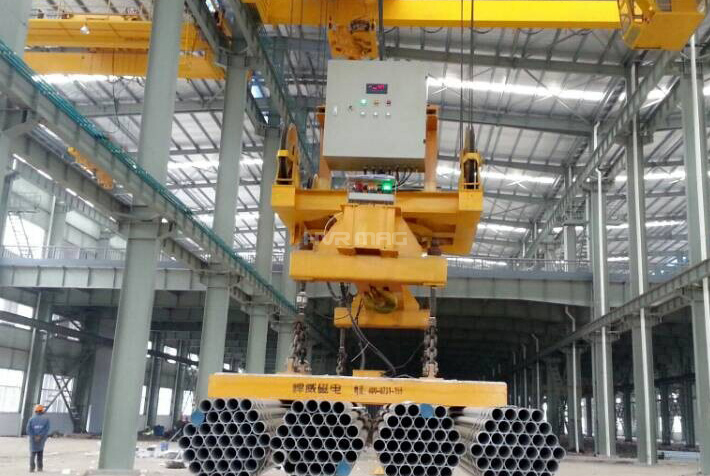

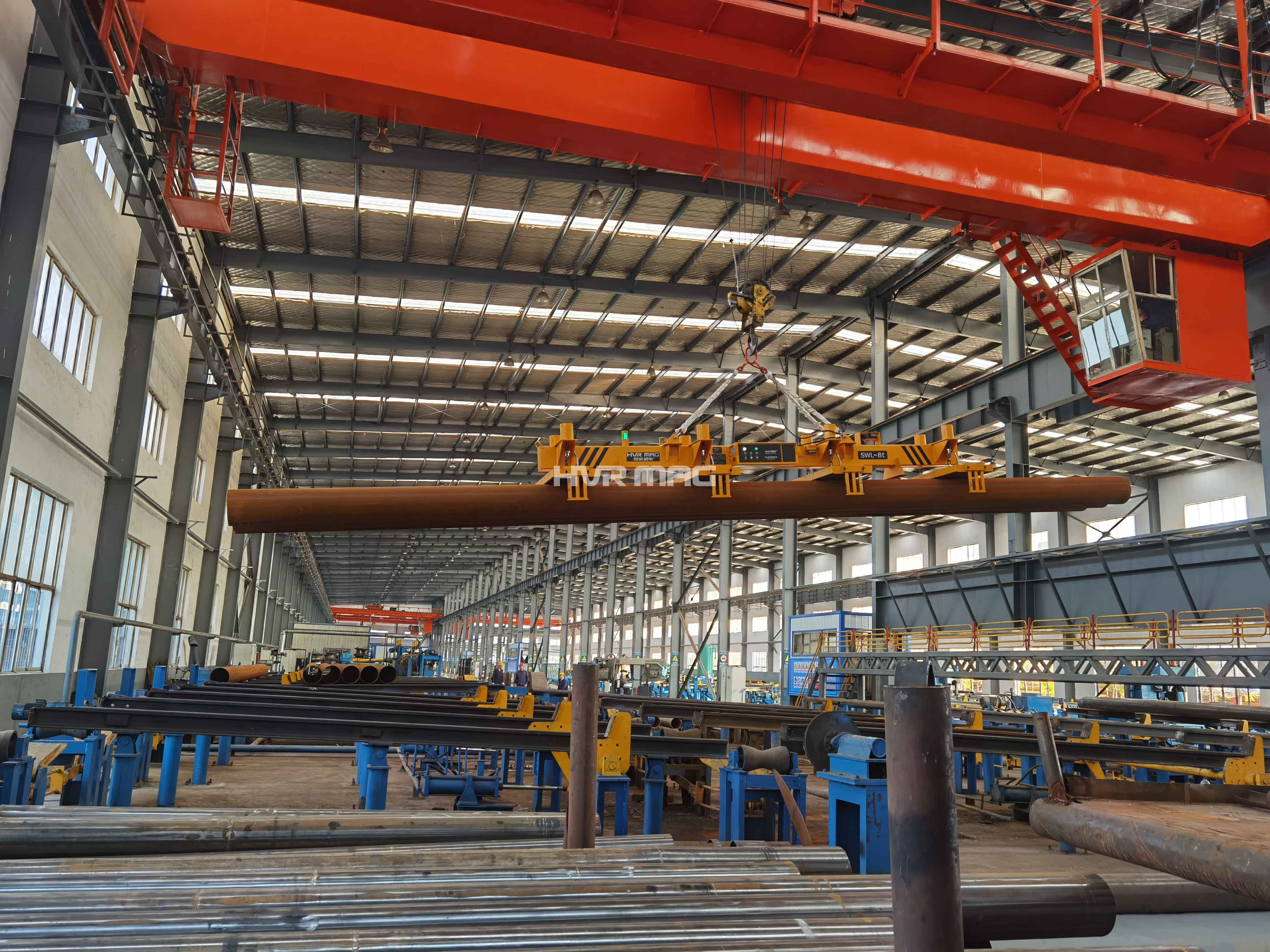

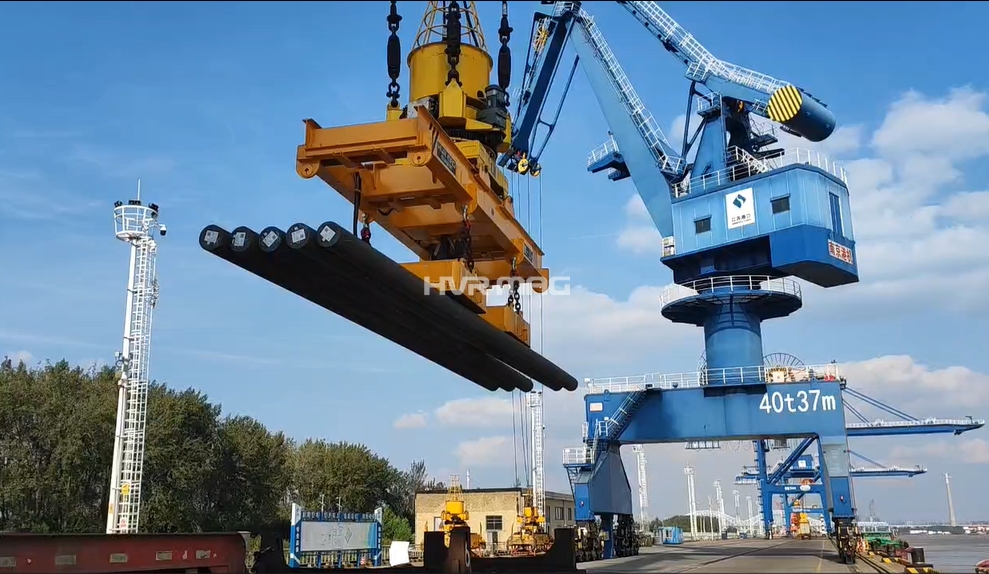

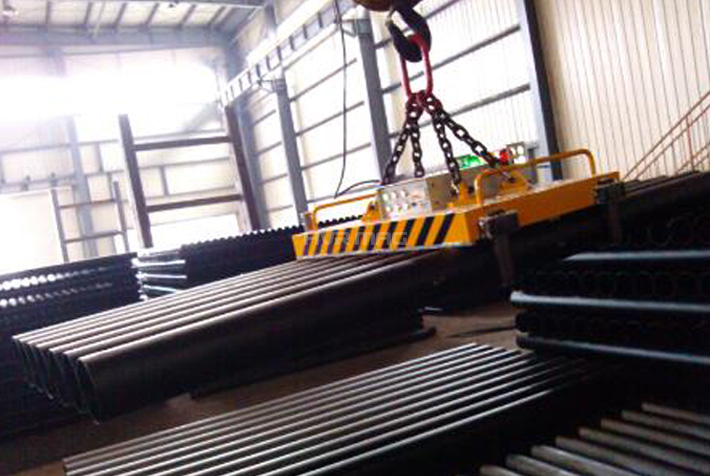

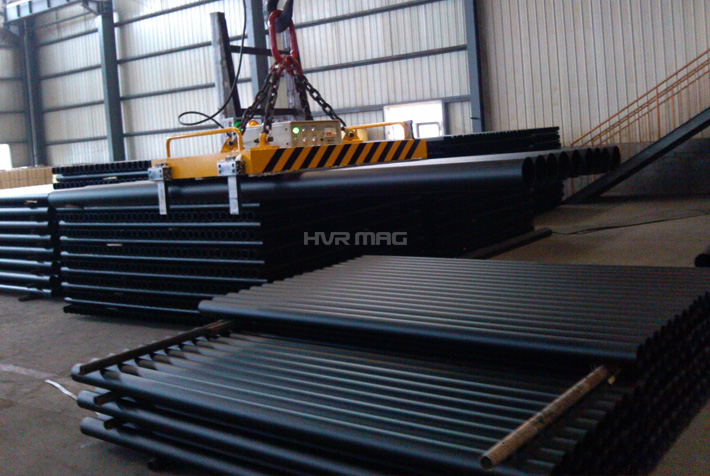

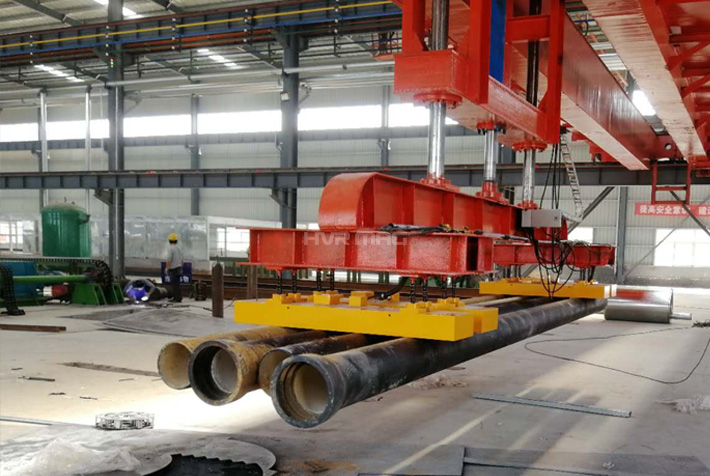

For fast and safe manipulation of single, row and bundles of pipes with no risk of damage to the coating or paint layer.

Space and cost saving solution as no wooden dividers are required.

Electro permanent magnet modules with electronic control unit on board.

Operation by means of the built-in digital push buttons or by the standard supplied radio remote control.

Operation by means of a PLC is possible.

A Much Safer Type of LIFTING MAGNETS

Electro permanent magnetic technology independent of the electric current = 100% safe.

Safety Factor 3:1

An inductive proximity switch mounted on the lifting mechanism prevents accidental demagnetization in the air.

Integrated "PICK-UP" Cycle at lower force (4 levels) for picking up thin steel plates, followed by FULLMAG.

Digital illuminated push buttons for easy and clear operation.

Simultaneous 2-button operation to demagnetize.

Lamp block for indication of the status of the magnet.

Radio remote control prevents the operator from getting close to the load.

Advantages of an electrical versus hydraulic telescopic system.

HT Series Lifting Magnets for Steel Tubes

Art No.	Series Code	Length(mm/in)	Width(mm/in)	Dead Weight(kg/Lbs)	Capacity(kg/Lbs)
Min.	Max.	Min.	Max.
HT-06-010	HT-010B0102-1	1000/39	6000/236	114/4	406/16	564/1241	1000/2200

Art No.

Series Code

Length(mm/in)

Width(mm/in)

Dead Weight(kg/Lbs)

Capacity(kg/Lbs)

Min.

Max.

Min.

Max.

HT-06-010

HT-010B0102-1

1000/39

6000/236

114/4

406/16

564/1241

1000/2200

Request A Quote
