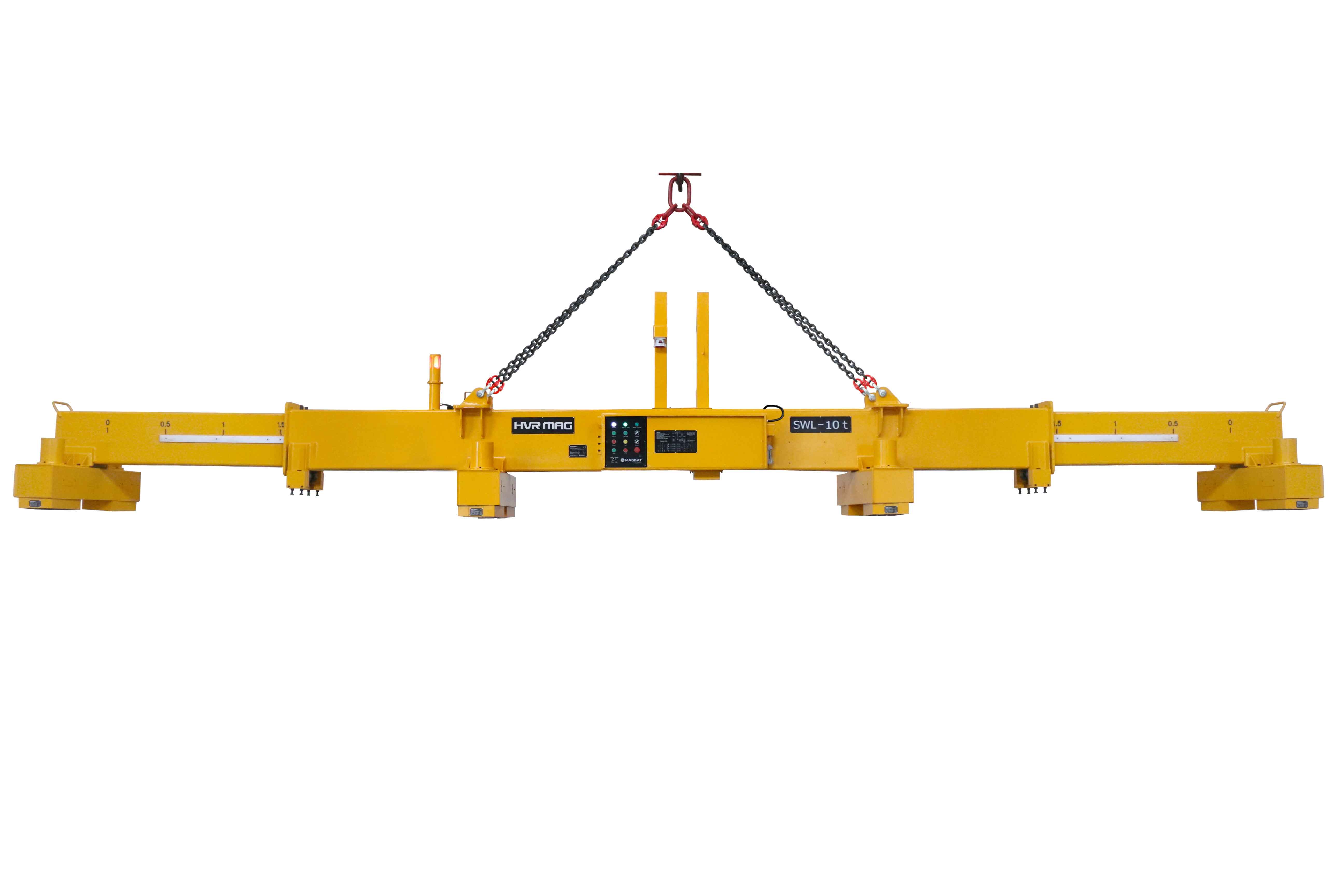

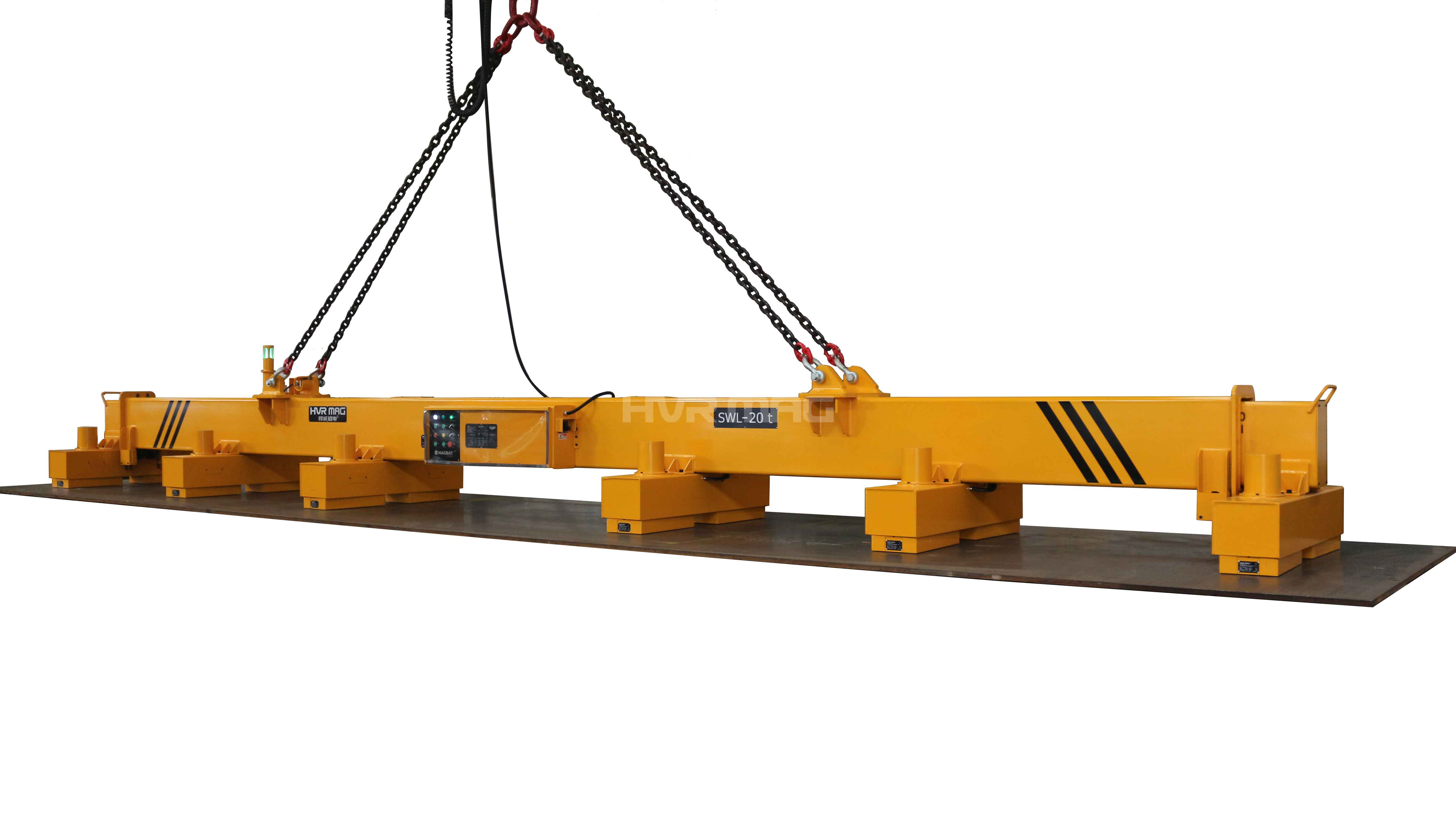

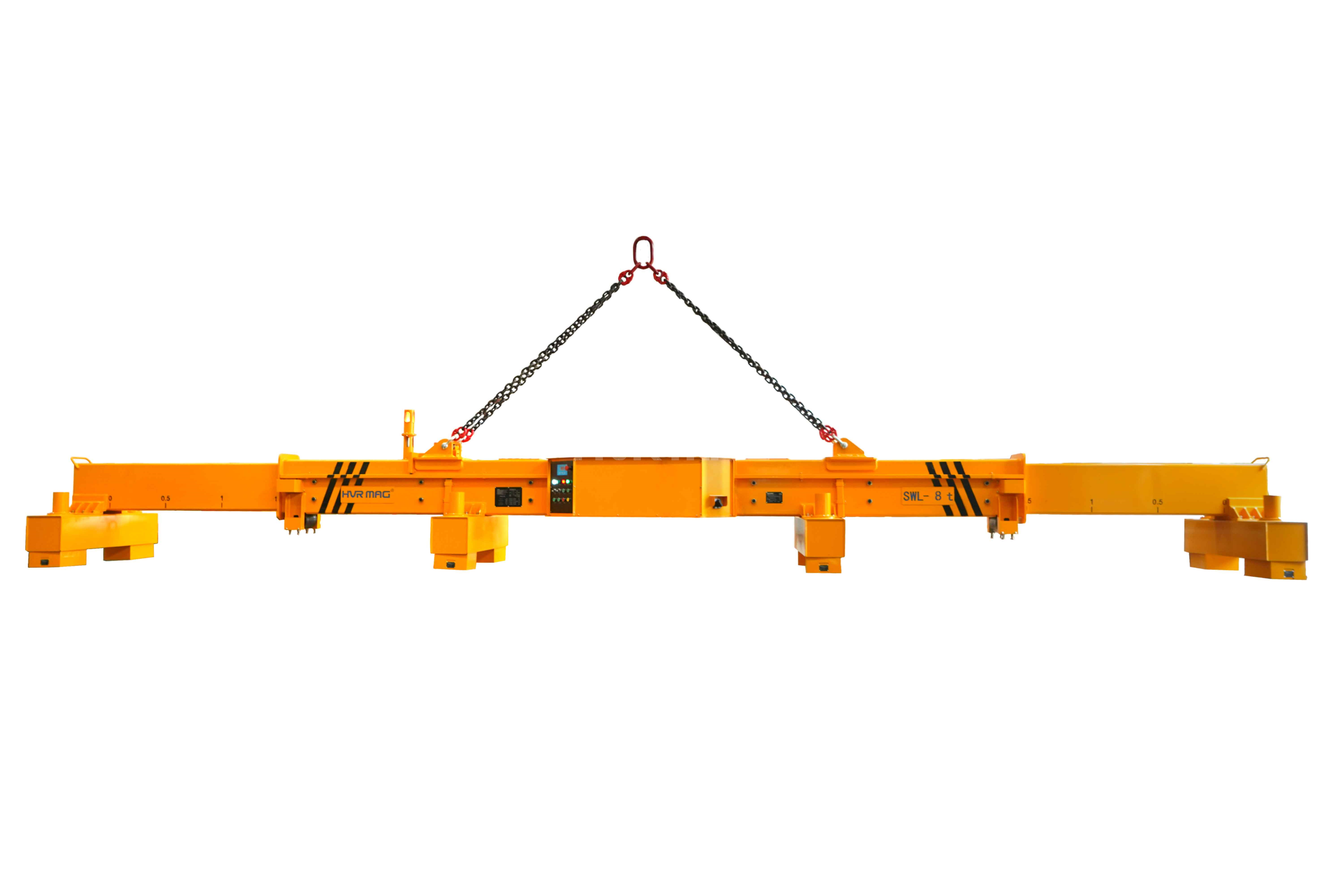

HM2 Series Electro Permanent Lifting Magnets with Telescopic Beam

HM2 Series electro permanent lifting magnets with telescopic beams are specially developed for safe lifting and moving of steel sheets with different lengths.The electrically driven telescopic system makes it possible to use this traverse in limited spaces.

The welded beam made of structural steel is equipped with a number of electro permanent magnet modules, which are elastically suspended, for a perfect adaptation on the steel sheet.

The electronic control unit has a selector switch with which several magnetic modules can be activated or deactivated according to the shape of the steel sheet.

Controlling the lifting operation via the integrated digital push buttons or with the standard supplied radio remote control.

SEND INQUIRY

A Much Safer Type of LIFTING MAGNETS

HM2 Series Electro Permanent Lifting Magnets with Telescopic Beam

Art No.
Series Code
Length(mm/in)
Width(mm/in)
Thickness(mm/in)
Dead Weight(kg/Lbs)
Capacity(kg/Lbs)
Min.
Max.
Min.
Max.
Min.
HM2-12-050
HM2-050A0204-1
3000/118
12000/472
500/20
3500/137.8
5/0.2
2350/5170
5000/11000
HM2-12-080
HM2-080A0204-1
3000/118
12000/472
500/20
3500/137.8
5/0.2
2500/5500
8000/17600
HM2-12-090
HM2-090A0204-1
3000/118
12000/472
500/20
3500/137.8
5/0.2
2650/5830
9000/19800
HM2-12-120
HM2-120A0204-1
3000/118
12000/472
500/20
3500/137.8
5/0.2
2800/6160
12000/26400
HM2-12-150
HM2-150A0204-1
3000/118
12000/472
500/20
3500/137.8
5/0.2
2950/6490
15000/33000
HM2-12-200
HM2-200A0206-1
3800/149.6
12000/472
500/20
3500/137.8
8/0.3
3350/7370
20000/44000
HM2-12-240
HM2-240A0206-1
3800/149.6
12000/472
500/20
3500/137.8
5/0.2
3550/7810
24000/52800
HM2-16-090
HM2-090A0206-1
3100/122
16000/630
500/20
3500/137.8
5/0.2
3300/7260
9000/19800
HM2-16-120
HM2-120A0206-1
3100/122
16000/630
500/20
3500/137.8
5/0.2
3400/7480
12000/26400
HM2-16-160
HM2-160A0206-1
3100/122
16000/630
500/20
3500/137.8
5/0.2
3600/7920
16000/35200
HM2-16-200
HM2-200A0206-1
3100/122
16000/630
500/20
3500/137.8
5/0.2
3800/8360
20000/44000
HM2-16-240
HM2-240A0206-1
3100/122
16000/630
250/9.8
500/20
5/0.2
4000/8800
24000/52800
