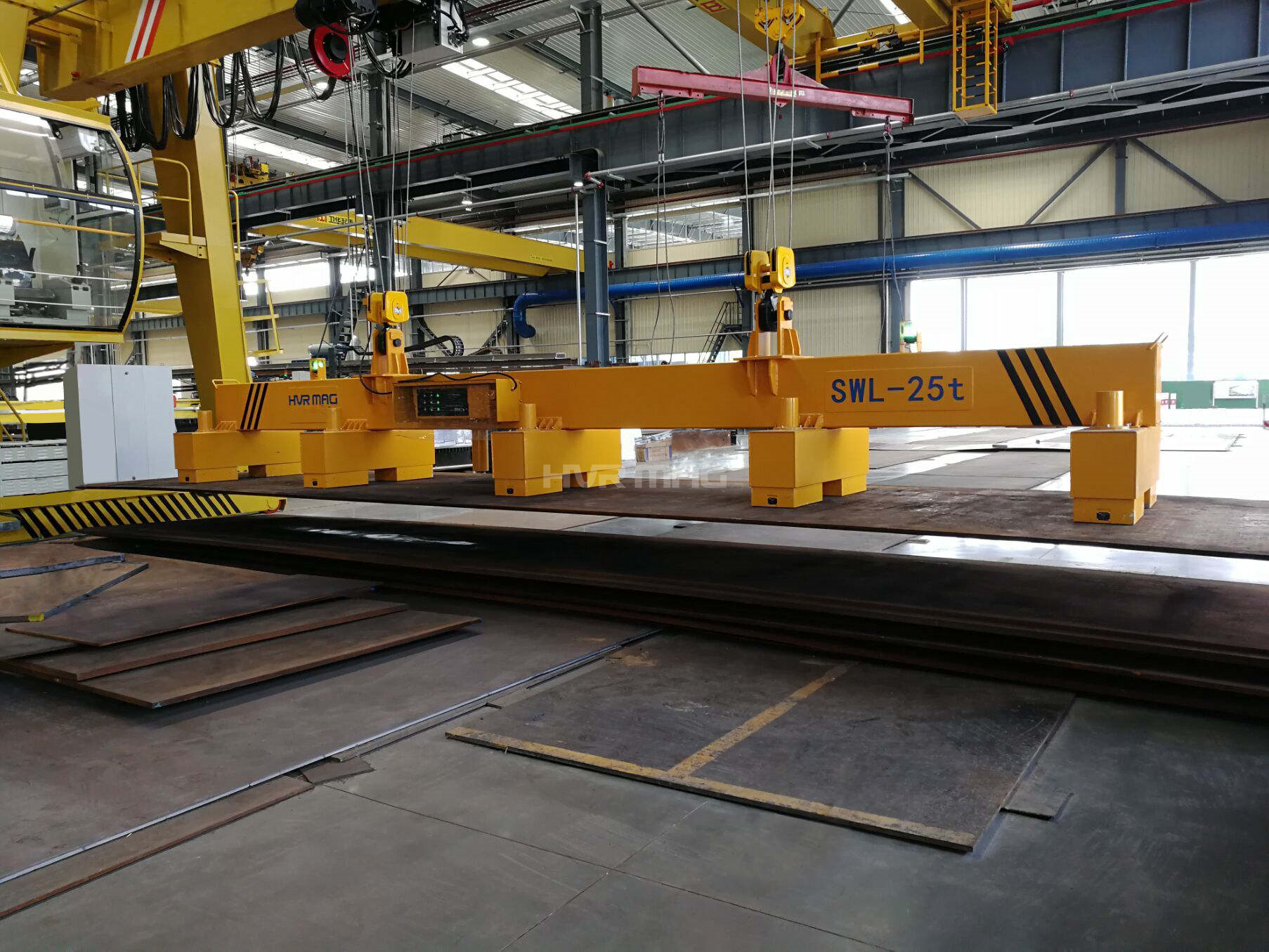

Lifting a single steel plate/sheet each time, with plate size and weight varying, is a precision handling job that has strict requirement about the lifting magnets used. HVR MAG HM1 Series single plate lifting magnets are custom engineered for single steel plate/sheet handling.
The welded beam made of construction steel, is equipped with a number of electro permanent magnetic modules, which are each elastically suspended, for a perfect adaptation to the steel sheet.
The electronic control unit is equipped with a selector switch that allows to activate/deactivate a selective number of magnetic modules.
The PICK-UP cycle grants the lifting of 1 single steel sheet.
Controlling the plate handling operation via the integrated digital push buttons or with the standard supplied radio remote control.
|
Art No.
|
Series Code
|
Length(mm/in)
|
Width(mm/in)
|
Thickness(mm/in)
|
Dead Weight(kg/Lbs)
|
Capacity(kg/Lbs)
|
||
|---|---|---|---|---|---|---|---|---|
|
Min.
|
Max.
|
Min.
|
Max.
|
Min.
|
||||
|
HM1-06-010
|
HM1-010A0104-1
|
400/15.7
|
6000/236
|
60/2.3
|
400/45.7
|
4/0.1
|
4230/947
|
1000/2200
|
|
HM1-06-012
|
HM1-012A0104-1
|
200/7.9
|
6000/236
|
250/9.8
|
1500/59
|
8/0.3
|
450/992
|
1200/2640
|
|
HM1-06-030
|
HM1-030A0203-1
|
500/19.7
|
6000/236
|
500/19.7
|
3200/126
|
5/0.2
|
900/1984
|
3000/6600
|
|
HM1-06-060
|
HM1-060A0203-1
|
500/19.7
|
6000/236
|
500/19.7
|
3200/126
|
5/0.2
|
1000/2200
|
6000/2727
|
|
HM1-06-090
|
HM1-090A0203-1
|
500/19.7
|
6000/236
|
500/19.7
|
3200/126
|
5/0.2
|
1100/2420
|
9000/19800
|
|
HM1-06-240
|
HM1-240A0203-1
|
500/19.7
|
6000/236
|
580/22.8
|
3200/126
|
8/0.3
|
1600/3520
|
24000/52800
|
|
HM1-09-050
|
HM1-050A0204-1
|
2350/92.5
|
9000/354
|
500/19.7
|
3200/126
|
5/0.2
|
1200/2640
|
5000/11000
|
|
HM1-09-080
|
HM1-080A0204-1
|
2350/92.5
|
9000/354
|
500/19.7
|
3200/126
|
5/0.2
|
1300/2860
|
8000/3636
|
|
HM1-09-090
|
HM1-090A0204-1
|
2350/92.5
|
9000/354
|
500/19.7
|
3200/126
|
5/0.2
|
1400/3080
|
9000/19800
|
|
HM1-09-120
|
HM1-120A0204-1
|
2350/92.5
|
9000/354
|
500/19.7
|
3200/126
|
5/0.2
|
1500/3300
|
12000/26400
|
|
HM1-09-160
|
HM1-160A0204-1
|
2350/92.5
|
9000/354
|
600/23.6
|
3200/126
|
5/0.2
|
1600/3520
|
16000/35200
|
|
HM1-12-019
|
HM1-019A0106-1
|
2100/82.8
|
12000/472
|
250/9.8
|
1500/59
|
5/0.2
|
740/1628
|
1900/4180
|
|
HM1-12-050
|
HM1-050A0205-1
|
5000/196
|
12000/472
|
500/19.7
|
3500/137.8
|
5/0.2
|
1600/3520
|
5000/11000
|
|
HM1-12-080
|
HM1-080A0205-1
|
5000/196
|
12000/472
|
500/19.7
|
3500/137.8
|
5/0.2
|
1800/3960
|
8000/17600
|
|
HM1-12-100
|
HM1-100A0205-1
|
5000/196
|
12000/472
|
500/19.7
|
3500/137.8
|
5/0.2
|
2000/4400
|
10000/22000
|
|
HM1-12-150
|
HM1-150A0205-1
|
5000/196
|
12000/472
|
500/19.7
|
3500/137.8
|
5/0.2
|
2200/4840
|
15000/33000
|
|
HM1-12-200
|
HM1-200A0205-1
|
5000/196
|
12000/472
|
600/23.6
|
3500/137.8
|
5/0.2
|
2400/5280
|
20000/44000
|
|
HM1-12-240
|
HM1-240A0206-1
|
5000/196
|
12000/472
|
600/23.6
|
3500/137.8
|
5/0.2
|
2800/6160
|
24000/52800
|
|
HM1-15-025
|
HM1-025A0108-1
|
4000/15.7
|
15000/590
|
200/7.8
|
800/31.4
|
6/0.2
|
950/2090
|
2500/5500
|
|
HM1-16-100
|
HM1-100A0206-1
|
2800/110
|
16000/630
|
500/19.7
|
3500/137.8
|
5/0.2
|
2600/5720
|
10000/22000
|
|
HM1-16-140
|
HM1-140A0206-1
|
2800/110
|
16000/630
|
500/19.7
|
3500/137.8
|
5/0.2
|
2900/6380
|
14000/30800
|
|
HM1-16-200
|
HM1-200A0206-1
|
2800/110
|
16000/630
|
600/23.6
|
3500/137.8
|
5/0.2
|
3100/6820
|
20000/44000
|
|
HM1-16-240
|
HM1-240A0206-1
|
2800/110
|
16000/630
|
650/25.5
|
3500/137.8
|
5/0.2
|
3400/7480
|
24000/52800
|
|
HM1-06-005
|
HM1-010A0104-1
|
400/15.7
|
6000/236
|
60/2.3
|
400/16
|
8/0.3
|
430/946
|
480/1056
|
