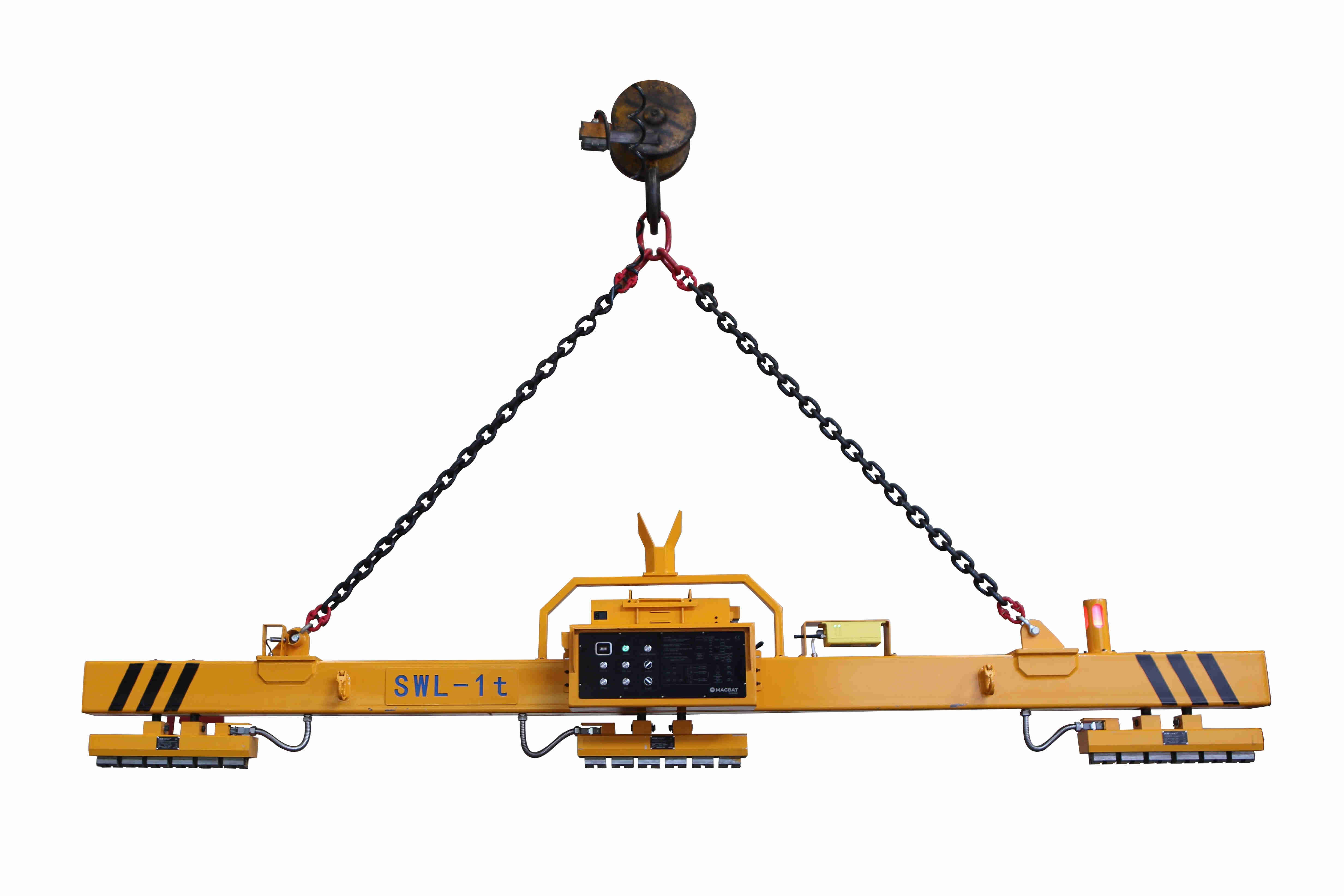

HBEPS Electro Permanent Magnetic Lifting Beam With Battery Supply For Profiles From 80-60mm In Width

Thanks to the integrated rechargeable battery group, this revolutionary electro permanent magnetic beam functions completely autonomously.

A power supply cable is not required.

Electric current pulse is only used to invert the magnet molecularly; the effective force is generated by permanent magnets.

No electricity consumed during working, safety ensured.

Due to the low power consumption, the rechargeable battery group has an autonomy of approximately 300 cycles. The battery group is charged by means of the built-in charger (230V / 50Hz).

The battery group is equipped with a quick-change system. A backup battery group is optionally available.

SEND INQUIRY

A Much Safer Type of LIFTING MAGNETS

HBEPS Electro Permanent Magnetic Lifting Beam with Battery Supply for Profiles from 80-60mm in Width

Art No.
Series Code
Length(mm/in)
Dead Weight(kg/Lbs)
Capacity(kg/Lbs)
Min.
Max.
HBEPS-06-013
HBEPS-013B0102-2
730/29
6000/236
595/1309
1300/2860
HBEPS-10-017/S
HBEPS-020B0102-2
1050/41
10000/394
720/1584
1700/3740
HBEPS-10-026/S
HBEPS-026B0104-2
1500/59
10000/394
1220/2684
2600/5720
HBEPS-12-026
HBEPS-026B0104-1
1500/59
12000/472
1178/2592
2600/5720
HBEPS-18-039
HBEPS-039B0106-1
3000/118
18000/709
1831/4028
3900/8580
HBEPS-24-052
HBEPS-052B0106-2
1000/39
24000/945
1831/4028
5200/11440
