Does Surface Roughness Affect the Lifting Capacity of Magnetic Lifters?

When you operate a magnetic lifter, you expect it to perform at its maximum rated capacity. However, the physical condition of the steel surface plays a massive role in actual performance. Surface roughness is not just a cosmetic issue; it directly impacts the magnetic circuit.

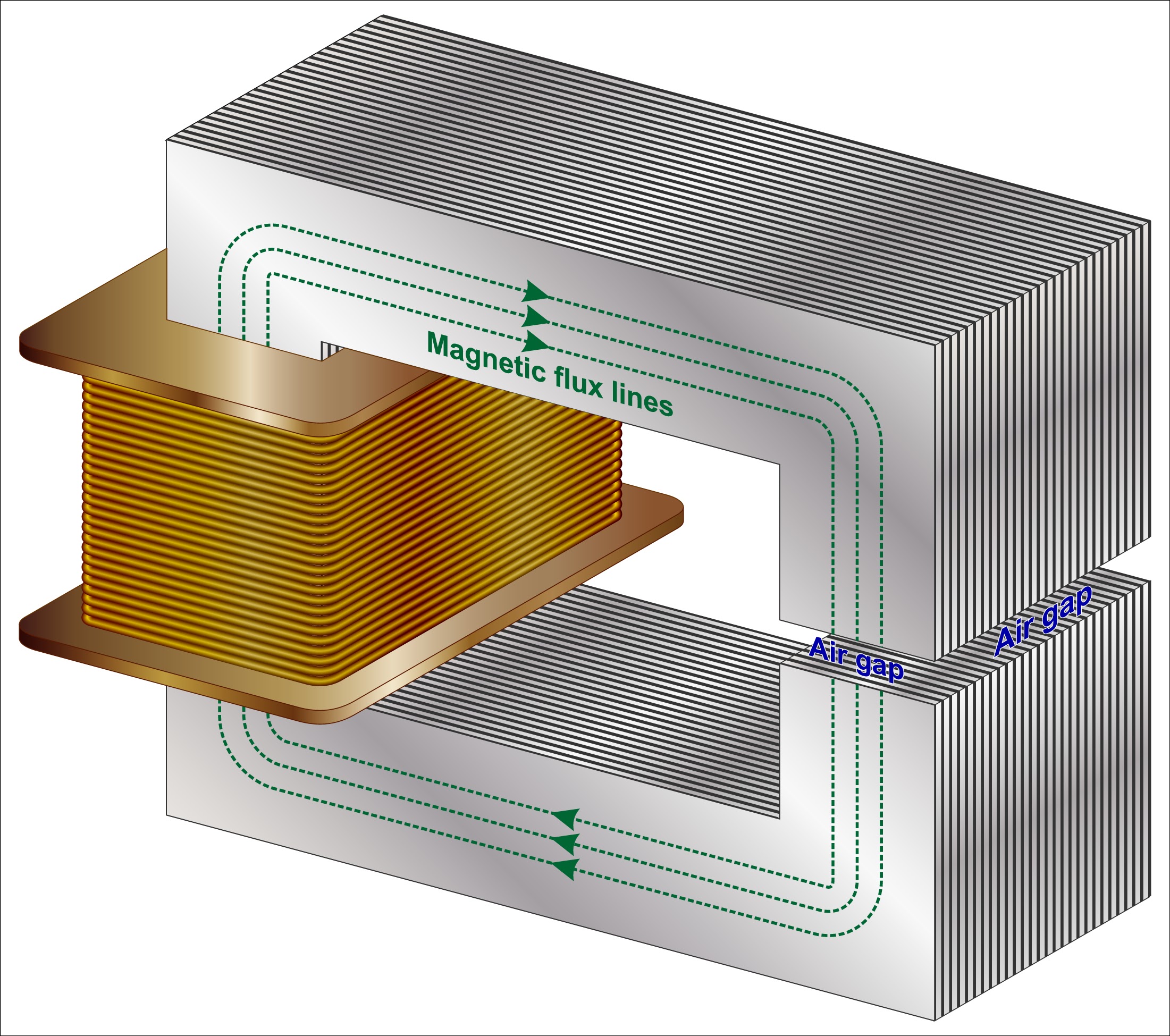

How Air Gap Affects the Lifting Capacity of Magnetic Lifters

Magnetic force relies on a tight "seal" between the magnet and the load. Rough surfaces, such as unmachined castings or rusted plates, create tiny pockets of air. Consequently, these microscopic gaps act as barriers to magnetic flux.

Even a tiny air gap can significantly reduce the lifting capacity of magnetic lifters. Because air does not conduct magnetism well, the field weakens before it reaches the steel. Therefore, a smooth and clean surface always yields the strongest grip.

Impact of Surface Contaminants

In addition to physical roughness, contaminants create similar problems. Thick layers of rust or industrial paint increase the distance between the magnet and the metal.

• -Heavy Rust: This can reduce lifting power by over 20%.
• -Thick Paint: It acts as a non-magnetic spacer.
• -Scale and Debris: These prevent the magnetic poles from making full contact.

The HVR MAG Engineering Advantage

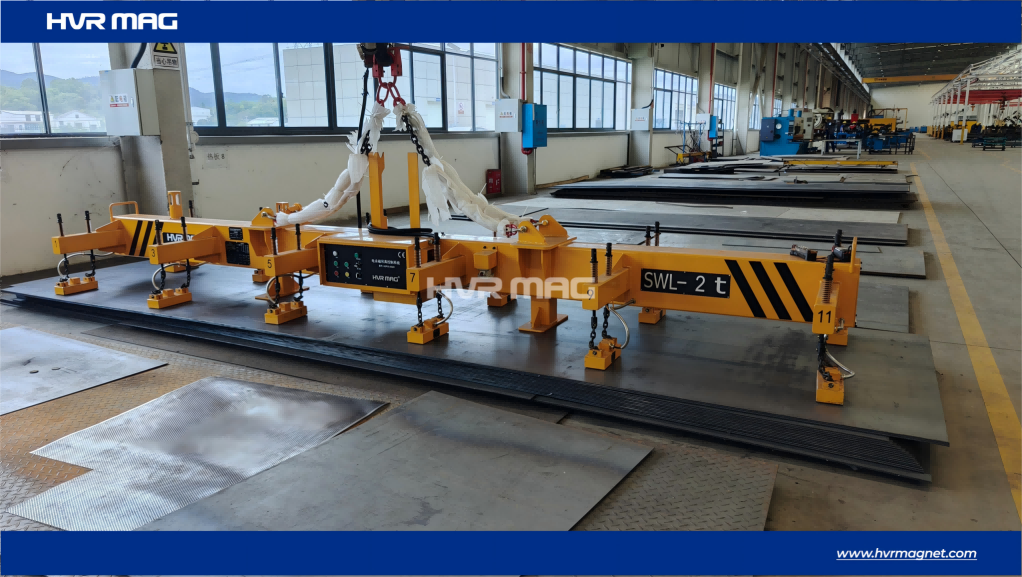

At HVR MAG, we design our electro-permanent magnets with these real-world challenges in mind. We specifically engineer our magnets to handle air gaps that exceed the standard roughness of common industrial steel.

Instead of requiring complex calculations from the user, HVR MAG applies a 3:1 safety factor to our equipment. This means the actual breakaway force is three times the rated lifting capacity of magnetic lifters. Furthermore, this high safety margin provides a massive buffer against surface irregularities. As a result, our customers enjoy a much safer and more reliable lifting process.

Essential Safety Practices

Although our 3:1 safety factor offers great protection, operators must still follow basic safety protocols. For instance, always clear loose scale or heavy debris before you begin the lift. Additionally, avoid lifting plates with severe deep pitting or extreme curvature. A quick visual inspection ensures a more stable and professional connection.

Conclusion

In a short, surface roughness is a silent thief of magnetic power. To maintain the maximum lifting capacity of magnetic lifters, you should prioritize clean contact points. By trusting HVR MAG’s robust design and 3:1 safety standard, you protect both your equipment and your team from unexpected risks.
